LCD Display – Sharing Customer Inquiries and Our Responses

Case 1: Ultra-Wide Bar-Type Display for a Compact Device

Customer Inquiry:

Good afternoon.

We are designing an electronic device that features a TFT LCD touchscreen with the following specifications:

• Active area: H:22 mm x L:148.5 mm
• Resolution: H:240 pixels x L:1620 pixels (or very close)
• LCD Type: TFT
• Contrast ratio: 800:1 or better
• Brightness: at least 650 cd/m²
• Interface: MIPI (or RGB)
• Pixel size: 109.5 or similar
• Power: 1.8V to 3.3V
• Touch panel: capacitive touch with I²C interface
• Touch controller: preferable FT5601 or GT911
• Operation temperature: -20 to +70°C (or extended industrial range if available)
• Backlight voltage: acceptable min 10V to max 20V
• Vibration test must pass: 10Hz to 150Hz at 100m/s² for at least 120 minutes

Will you be able to offer such a screen?

CDTECH Response

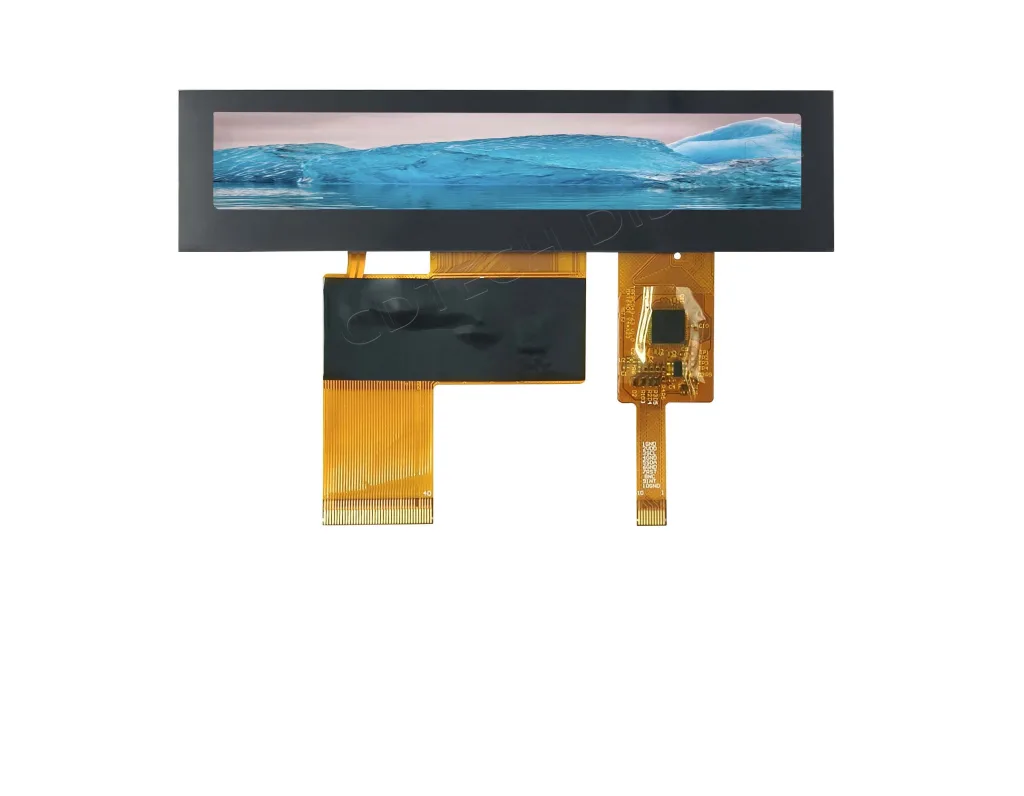

Hi, thank you for your email. We have a 4.3 inch bar-type LCD with a touch panel, the size of which is close to your requirement. But the resolution is 800×130, the interface is RGB, the touch IC is MXT640T, and brightness is 800 nits (typical). Please confirm if this product can be us

Model: S043HWV104EN-FC63

Specification: S043HWV104EN-FC63

– Later, the customer mentioned that this option was not suitable, since they needed the active screen to be around 22–25 mm in height and about 150 mm in length.
Therefore, we evaluated a cutting solution based on a 6.26 inch panel, and finally developed a 5.97 inch screen, which perfectly fits their requirements. Since this solution is not publicly released, we will not display the drawing here.

---

Case 2: Standard 6.5 Inch Display

Customer Inquiry

Hello,

I’m looking for LCD Display 6.5” 800×320

Qty: 2000 pcs

Best Regards

CDTECH Response

We have a standard product that meets this requirement:

Model: S065BWS07HD-DC07 V1.0

Specification: S065BWS07HD-DC07 V1.0

---

Case 3: Square LCD Modules with High Resolution

Customer Inquiry

Dear CDTECH team,

I hope this email finds you well. We are currently looking for 4 inch (85 mm × 85 mm) and 5 inch square TFT LCD displays with the following specifications:

SI	Requirement Category	Requirement Description
1	Resolution	720×720, 480×480
2	Refresh Rate	30/60 FPS
3	Brightness	300 nits or higher
4	Back Light	White backlight with a minimum of 8 LEDs
5	Display Size	4″ (85 mm × 85 mm) & 5″
6	Lamination Type	Tempered glass
7	Communication Protocol	2-Lane MIPI-DSI / 4-Lane MIPI-DSI / LVDS / DPI
8	Touch Type	Capacitive touch
9	Touch Sampling Rate	60 Hz minimum
10	Display Bonding	Optical bonding

Could you please share the available options that meet these requirements along with technical documentation and pricing for various quantities (10, 1k, 10k units)?

CDTECH Response

Thank you for your interest in our products. We have two standard parts, 4.0 inch 480×480 and 5.0 inch 600×600, that can meet your requirements. Please find attached the datasheets for your reference:

• S040HWV08NN-DC03
• S050QWS115EN V1.0

However, the 5.0 inch 600×600 version does not currently have a touch panel. Tooling for the touch panel is required. Please let us know if you have any specific requirements for the touch panel (such as cover lens or touch IC).

Our sales representative, Rahm Fan, will provide further product service for your team.

---

Case 4: Supporting Screen for a Laptop

Customer Inquiry

Hi,

We will be requiring the LCD with CTP as the P/N. I would like to get samples of this LCD panel. It will be used as a supporting screen to a laptop. Right now, I am in the R&D phase where I want to test out samples of your S058HWV08HS-DC01 product, and if all seems fine and compatible, then we would like to buy more panels from you. The targeted production size at that time will be 10,000 units per month.

The product specifications like screen size, interface, and touch panel of this S058HWV08HS-DC01 are best suited for our product.

Could you please answer the following questions and also share any other relevant details that might help us choose the best display for our product?

• What will be the sample price of S058HWV08HS-DC01?
• What will be the lead time for these samples?
• What will be the sample MOQ?
• What will be the production price of S058HWV08HS-DC01 (if we want to go ahead with 10k units per month)?
• What will be the lead time for production units?
• What will be the production units’ MOQ?
• Will you be sending the breakout board along with the panel?

Hope to hear from you soon!

Good Day!

CDTECH response

What will be the sample price of S058HWV08HS-DC01?
CDTECH: Sample unit price – $**/pcs, EXW.

What will be the lead time for these samples?
CDTECH: 3–4 weeks.

What will be the sample MOQ?
CDTECH: We can support 2–3 rounds for sample test and pilot run. Samples are not subject to an MOQ.

What will be the production price of S058HWV08HS-DC01 (if we want to go ahead with 10k units per month)?
CDTECH: Can we schedule a meeting to discuss this project? Then we can further evaluate the quotation for this case.

What will be the lead time for production units?
CDTECH: 5–6 weeks.

What will be the production units’ MOQ?
CDTECH: MOQ 1k pcs/lot.

Will you be sending the breakout board along with the panel?
CDTECH: What type of board do you need?
