LCD Display Module · CDTECH Electronics

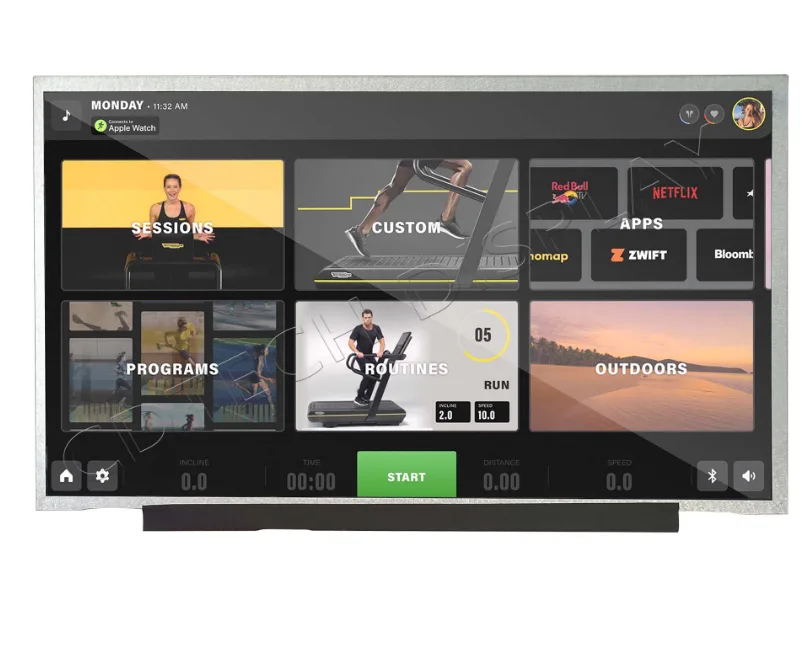

S156QWU07ES V1.0

Sunlight-readable · eDP interface · Full viewing angle

Send inquiry ← All products

Outdoor Readable Industrial Panel PC Professional Equipment HMI Vehicle / Automotive Aerospace & Marine

Size

15.6

Resolution

1920*1080

Brightness

1200

Temp Range

Operating Temp:-20C-+70C,S-rage Temp:-30C-+80C

Technical Specifications

Detailed specs

Size (inch)	15.6
Viewing Angle	IPS
Resolution	1920*1080
Luminance (nits)	1200
AA Dimension (mm)	344.16*193.59
Module Dimension (mm)	360.00212.305.7
CTP Dimension (mm)	N/A
LCD Dimension (mm)	N/A
LCD Driver IC	TBD
LCM Interface	EDP 30PIN
Backlight Connection	10S10P
Backlight Drive Specs	VF=27-33V,IF = 450mA
PWM-IC	N/A
Touch Structure	N/A
CTP Interface	N/A
CTP IC	N/A
Interface Connector Type	FPC:30PIN 0.5pitch connector
Reliability / Temp Range	Operating Temp:-20C-+70C,S-rage Temp:-30C-+80C

RoHS Compliant ISO 9001 / 13485 IATF 16949 REACH Custom FPC available CTP / RTP option

Interested in this module?

Send the model number and your application details. I'll reply within 1 business day.

[email protected] Email inquiry →

Contact form

From inquiry to sample

Send inquiry

Share your application, interface, and any existing part number.

Spec review

I review and suggest matching options. Usually within 1 business day.

Quotation

Formal quote with unit price, MOQ, lead time, and customization options.

Sample delivery

Standard sample lead time 2 to 4 weeks. Datasheet included.

Applications

Where this module fits

Outdoor Readable

With 800+ nits brightness, this module maintains legibility in direct sunlight. Suitable for any outdoor or semi-outdoor application where ambient light washout is a concern.

800+ nits Sunlight readable AG coating option Wide temp option

Industrial Panel PC

eDP interface enables direct connection to x86 or ARM SOC platforms used in embedded panel PCs, ruggedized tablets, and all-in-one industrial computers.

eDP interface High resolution Wide size range Touch option

Professional Equipment

eDP interface is standard for golf launch monitors, surveying instruments, professional test equipment, and embedded computing platforms requiring high resolution and stable display performance.

eDP interface High resolution Color accurate Stable supply

Industrial HMI

HMI panels in factory automation need wide-temp operation, reliable LVDS or RGB interface, and optional touch integration. IP-rated cover glass and custom FPC routing are available.

LVDS / RGB Touch option Custom FPC Wide temp

Vehicle & Automotive

In-vehicle displays require wide operating temperature, vibration resistance, and high brightness for direct sunlight readability. LVDS interface is standard for automotive-grade integration.

Wide temp grade High brightness LVDS interface IATF 16949

Aerospace & Marine

Marine and aerospace environments require wide temperature range, salt-fog resistance from enclosure side, and reliable interface. LVDS is preferred for long-run signal integrity in these applications.

Wide temp LVDS interface High reliability Low EMI

Smart Home

Smart home panels, thermostats, and control surfaces use compact displays with RGB, MIPI, or SPI interface. Low power consumption and slim profiles are key requirements for wall-mounted applications.

RGB / MIPI / SPI Low power Slim profile Touch option

Medical Devices

Medical display integration requires stable long-term supply, consistent quality, and cleanable surface options. OCA optical bonding improves contrast and reduces reflection for clinical environments.

ISO 13485 OCA bonding option Long-term supply Stable quality

FAQ

Common questions

Based on the specs of this module, it is well suited for: Outdoor Readable, Industrial Panel PC, Professional Equipment, Industrial HMI. If your application is not listed, send me the details and I will advise directly.

For standard off-the-shelf modules, samples start from 1 to 20 pcs. Production MOQ is typically 500 pcs for most sizes. Custom configurations (FPC routing, cover glass, touch integration) share the same MOQ with an NRE charge scoped upfront before commitment.

It depends on whether the module is standard or requires custom tooling. For standard modules with no new tooling: single module 3 days, with CTP 4 days (5 to 7 days if tuning is needed), with RTP 3 days, full assembly with board 5 to 7 days. For custom-tooled components, lead times vary by part: main FPC 3 to 4 weeks, light guide plate and frames 4 to 5 weeks, standard cover glass 3 to 4 weeks, cover glass with AG or AR coating 5 to 6 weeks, CTP sensor 5 weeks, adapter board or HDMI board 6 to 7 weeks. Quotation is typically within 1 business day. Contact me with your configuration and I will give you a precise estimate.

Yes. Available customizations include FPC connector repositioning and custom pin-out, cover glass with AG, AR, or AF coating, OCA optical bonding, capacitive or resistive touch panel integration, and backlight brightness adjustment. NRE and MOQ apply and are scoped before commitment.

EOL replacement is one of the most common requests I handle. Send me the original part number or datasheet and I will identify mechanically and electrically compatible candidates, flag any pinout or power sequencing differences, and scope FPC adapter options if needed before you commit to samples.

Custom Configuration

Need this module modified for your design?

Many customers start from a standard module and adapt it to their enclosure, interface, or environment. Common modifications include FPC rerouting, cover glass, touch integration, and brightness adjustment.

Custom FPC connector position and pin-out Cover glass with AG, AR, or AF coating Capacitive or resistive touch integration OCA optical bonding Backlight brightness adjustment

Have a modification in mind?

Tell me what you need to change on S156QWU07ES V1.0. I will scope the NRE, MOQ, and lead time before you commit to anything.

Describe your requirement below →

Ready to proceed?

Get a quote for
S156QWU07ES V1.0

Send your quantity, application, and any customization requirements. I will reply within 1 business day.

Email inquiry → Contact form

[email protected]
